Electric motors are the backbone of modern machinery, from electric vehicles to industrial automation. Among the latest innovations in motor design, the hairpin winding motor stands out for its efficiency, durability, and performance. Utilizing hairpin windings, this technology has transformed the way motors are designed and manufactured, offering advantages that traditional winding methods often struggle to achieve.
What Are Hairpin Windings?
Understanding Hairpin Technology

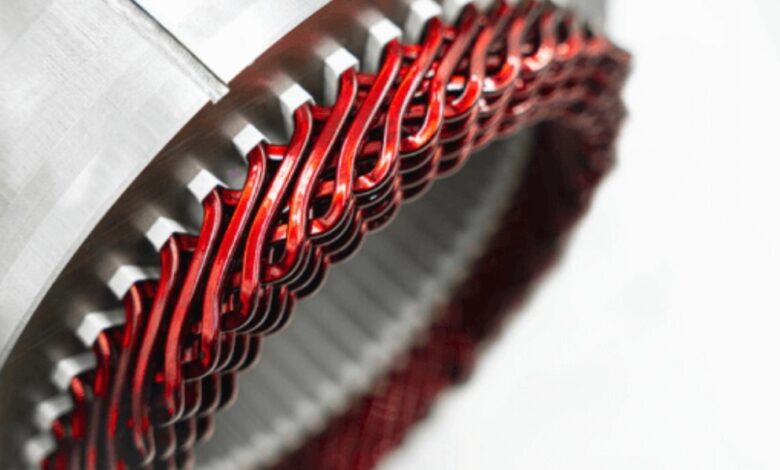

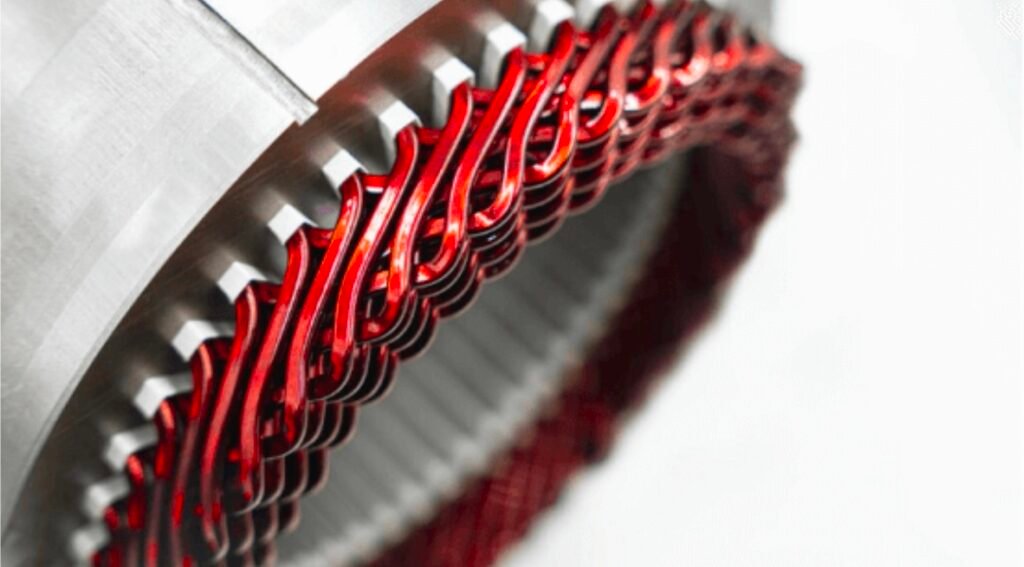

Hairpin windings are a specialized method of constructing motor coils. Instead of using traditional round wires, this design uses flat, rectangular wires bent into a hairpin shape. These pins are inserted into the stator slots and then welded at the ends to form a complete winding. This approach provides improved packing density and better thermal management compared to conventional winding methods.
How It Differs from Traditional Windings
Traditional motors rely on round wire windings that can leave gaps and reduce the efficiency of the motor. Hairpin windings, with their flat geometry, allow for tighter packing, reducing resistance and improving the overall electrical performance. This design also enables better heat dissipation, which is crucial for high-power applications.
Key Advantages of Hairpin Winding Motors
1. Higher Efficiency
One of the most significant benefits of hairpin winding motors is their high efficiency. The flat design of hairpin windings reduces electrical resistance, allowing more power to be converted into mechanical energy. This efficiency is particularly important in applications like electric vehicles, where every bit of energy savings extends the operating range.
2. Improved Thermal Management
Heat is one of the biggest challenges in motor design. Hairpin windings offer superior thermal management because their flat shape allows for better contact with the stator and improved heat transfer. This reduces the risk of overheating and increases the motor’s lifespan, making it more reliable in demanding applications.
3. Enhanced Durability
The mechanical robustness of hairpin windings contributes to the overall durability of the motor. The rigid structure minimizes the risk of vibration-related damage, which is common in traditional wound motors. This feature makes hairpin winding motors ideal for environments that require high reliability, such as industrial machinery and electric transportation.
4. Higher Power Density
Hairpin windings enable motors to achieve higher power density without increasing the size. By packing more copper into the same stator volume, the motor can generate more torque and power, improving performance in compact spaces. This is particularly advantageous in applications where space and weight are critical, such as electric vehicles or aerospace technology.
5. Lower Electromagnetic Losses
The precise arrangement of hairpin windings helps minimize electromagnetic losses, which are a common source of inefficiency in traditional motors. Reduced losses translate to less wasted energy, lower operating temperatures, and higher overall performance. This characteristic makes hairpin winding motors suitable for high-speed and high-load applications.
Applications of Hairpin Winding Motors
Electric Vehicles
One of the most promising applications of hairpin winding motors is in electric vehicles. Their high efficiency and power density make them ideal for maximizing driving range while maintaining compact motor size. Improved thermal management ensures consistent performance even under heavy loads and long driving conditions.
Industrial Automation
Hairpin winding motors are widely used in industrial automation, where reliability and efficiency are crucial. Machines that operate continuously benefit from the enhanced durability and thermal performance of these motors, leading to reduced maintenance costs and longer service life.
Renewable Energy
In renewable energy systems, such as wind turbines, efficiency and reliability are critical. Hairpin winding motors provide the necessary performance while handling variable loads and harsh environmental conditions. The reduced electromagnetic losses also contribute to better energy conversion rates, making these motors ideal for sustainable energy applications.
Manufacturing and Design Benefits
Simplified Manufacturing Process
The use of hairpin windings can simplify the motor manufacturing process. Automated machines can insert and weld the hairpin wires with high precision, reducing human error and improving consistency. This automation also allows for scalable production, meeting the increasing demand for high-performance motors.
Flexibility in Motor Design
Hairpin winding technology allows engineers to experiment with different winding configurations, optimizing the motor for specific applications. Whether the goal is maximum efficiency, high torque, or compact design, hairpin windings offer flexibility that traditional round wire windings cannot easily match.
Future of Hairpin Winding Motors
As industries continue to push for more efficient and compact electric motors, hairpin winding technology is expected to play a central role. Ongoing innovations in materials and manufacturing techniques promise to enhance the performance, reliability, and cost-effectiveness of these motors. This makes hairpin winding motors a key technology for the next generation of electric vehicles, industrial equipment, and renewable energy systems.
Conclusion
The hairpin winding motor is transforming the landscape of electric motor technology. By leveraging hairpin windings, these motors offer higher efficiency, better thermal management, enhanced durability, and superior power density compared to traditional designs. As industries continue to seek energy-efficient and reliable solutions, hairpin winding motors stand out as a promising choice for modern applications, from electric vehicles to industrial automation. The future of electric motor technology is undoubtedly bright, powered in large part by the advantages of hairpin winding technology.
